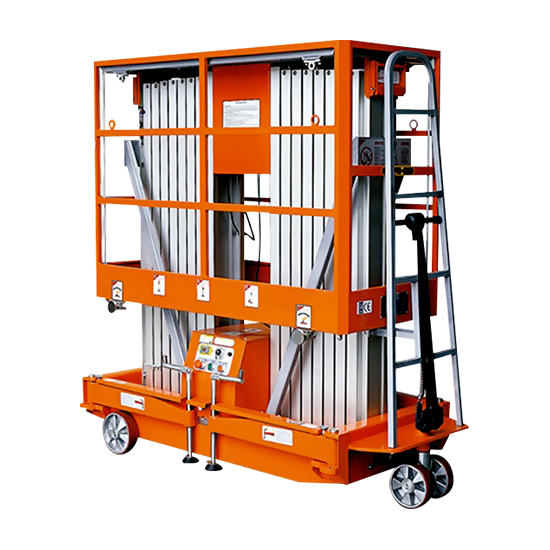

Electric Work Platform : Dual
| MODEL | DUAL MAST AERIAL WORK PLATFORM | ||||
| ESP6020 | ESP0820 | ESP1020 | ESP1220 | ||
| Max. Platform Height | mm. | 6000 | 8000 | 10000 | 12000 |
| Max. Machine Height | mm. | 7050 | 9050 | 11050 | 13050 |
| Min. Machine Height | mm. | 1800 | 1800 | 1800 | 2020 |
| Ground Clearance | mm. | 80 | 80 | 80 | 80 |
| Lift Rated Capacity | kg. | 300 | 300 | 250 | 200 |
| Platform Size | mm. | 1210x600 | 1210x600 | 1450x600 | 1450x600 |
| Outspread Size | mm. | 1880x1760 | 1880x1760 | 2220x1960 | 2250x2570 |
| Electrical Source AC | v | 220-240 | 220-240 | 220-240 | 220-240 |
| Electrical Source DC | v | 12 | 12 | 12 | 12 |
| Aneroid Battery | v/Ah | 2x12/75 | 2x12/75 | 2x12/75 | 2x12/75 |
| Charger | v/A | 12/15 | 12/15 | 12/15 | 12/15 |
| Lifting Motor AC | v/kw | 220/0.75-1.5 | 220/0.75-1.5 | 220/0.75-1.5 | 220/0.75-1.5 |
| Lifting Motor DC | v/kw | 12/2.5 | 12/2.5 | 12/2.5 | 12/2.5 |
| Overall Length | mm. | 1560 | 1560 | 1790 | 1790 |
| Overall Width | mm. | 840 | 840 | 840 | 890 |
| Overall Height | mm. | 1810 | 1810 | 1810 | 2030 |
| Overall Net Weight AC | kg. | 570 | 630 | 730 | 825 |
| Overall Net Weight DC | kg. | 610 | 670 | 770 | 865 |
* Specification is subject to change without notice.
